AUTOMOTIVE LIGHTING

Nuuk D-Line MC Work Light - 809289
10-32V, 39W, IP68/69K, 2740 Lumen
Amber and red position light
15cm cable with DT4-connector
Dim. 83,32x84,07x54,58mm
Not E-approved, EMC ECE R10

Nuuk D-Line Qube 3" Work Light - 809287
10-32V, 39W, IP68/69K, 2920 Lumen
Amber and red position light
15cm cable with DT4-connector
Dim. 85,03x85,75x53,27mm
Not E-approved, EMC ECE R10

Unity rock light yellow - 809508
3 types of rubber brackets included (flat, curved, 30° angle)
10-32V, 5,2W, IP69K, 460 Lumen, ECE R10
Dim. 74x42x14,3mm, 50cm cable

Unity rock light red - 809507
3 types of rubber brackets included (flat, curved, 30° angle)
10-32V, 5W, IP69K, 200 Lumen, ECE R10
Dim. 74x42x14,3mm, 50cm cable

Unity rock light amber - 809506
3 types of rubber brackets included (flat, curved, 30° angle)
10-32V, 5,2W, IP69K, 340 Lumen, ECE R10
Dim. 74x42x14,3mm, 50cm cable

Unity rock light white - 809505
3 types of rubber brackets included (flat, curved, 30° angle)
10-32V, 7,8W, IP69K, 780 Lumen, ECE R10
Dim. 74x42x14,3mm, 50cm cable

9-36V, IP68/69K, 4100(40W)/8200(80W) Lumen
Dim. L514xH30xD282mm, 2,5M cable
Not E-approved, EMC ECE R10

9-36V, IP68/69K, 4100(40W)/8200(80W) Lumen
Dim. L566xH43,9xD52,8mm, 1M cable
Not E-approved, EMC ECE R10

10-32V, 8,3W, 470 Lumen, IP69K
Dim. L78xH48xD22mm, 50cm cable
E-approved: ECE R23, ECE R65
EMC ECE R10

Reversing light + warning light
10-32V, 17,5W, 600 Lumen, IP68/69K
Dim. L90xH15xD40mm (height incl. bracket 21,8mm)
50cm cable
E-approved: ECE R23, ECE R65, EMC ECE R10

Heated lens with red and amber position light
10-32V, 70W, IP68/69K, 3710 Lumen
2M cable, not E-approved, EMC ECE R10

10-36V, 3940 Lumen, IP68/69K
Dim. L92,6xH92xD48,10mm
15cm cable with DT2-connector
EMC ECE R10, CISPR25 Class 3

10-36V, 2010 Lumen, IP68/69K
Dim. L76,4xH75,7xD39,3mm
15cm cable with DT2-connector
EMC ECE R10, CISPR25 Class 3

809284
10-32V, 38W, IP69K, 3150 Lumen
Red and Amber Position Light
15cm Cable with DT4-connector
Dim. 72x72x72mm
Not E-approved, EMC ECE R10

809283
10-32V, 38W, IP69K, 3150 Lumen
White and Amber Position Light
15cm cable with DT4-connector
Dim. 72x72x72mm
Not E-approved, EMC ECE R10

809282
10-32V, 44W, IP68/69K, 3450 Lumen
Red and Amber Position Light + Warning Light
15cm Cable with DT6-connector
Dim. 92,7x74,1x74,53mm
Not E-approved, EMC ECE R10

800691
12-70V, 11W, IP6K9K, 900 Lumen
2,5M cable, dim. 76x102x36mm
Not E-approved , EMC ECE R10

809272
Firefly Scene light 30W
12-48V, 30W, 2000 Lumen
50cm cable, dim. 152x40x32mm
Not E-approved

908539
12-70V, 6320 Lumen, IP69K
Dim. 109x109x70mm , EMC ECE R10

12-70V, 3210 Lumen, IP69K
Afm. 109x109x49mm , ECE R10

809260
FOR9T NO-GLARE Work Light 78W
10-48V, 78W, 3220 Lumen, IP69K
EMC ECE R10, Dim. 108x108x70mm
+ DT4-connector

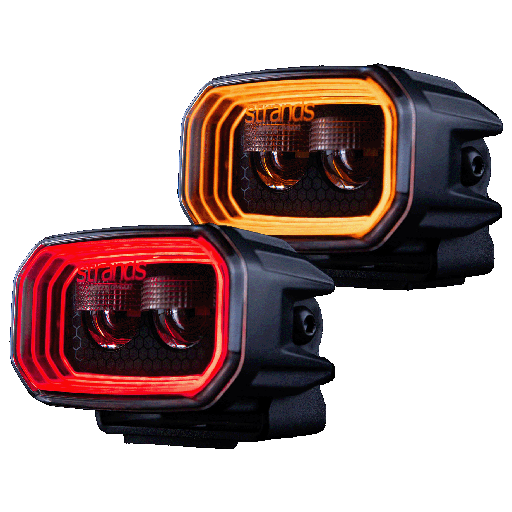

809259
10-48V, 31W, 1400 Lumen, IP69K
EMC ECE R10
E-approved
Dim. 108x65x70mm
+ DT4-connector

12-70V, 9W, IP6K9K
20cm cable, dim. 76x76x53,8mm
DT2 connector, no E-approval

12-70V, 14W, IP6K9K
20cm cable, dim. 76x76x53,8mm
DT2 connector, no E-approval

800701
12-24V, 16W, 1600 Lumen
1m cable, dim. 132,9x43,9x15,4mm
Not E-approved

809247
9-36V, 21W, 2222 Lumen, IP68/69K
EMC ECE R10, CISPR25 class 3
Dim. 71x71x32,2mm
+ DT2-connector

12-70V, 3210 Lumen, IP69K
Afm. 109x109x49mm , ECE R10

800552
10-32V, 1370 Lumen, IP68/69K
Dimensions: W90xH15xD40mm (height incl. support 21.8mm)
50cm Cable

809271
10-48V,IP69K, 2000 Lumens
Dim. L150xD41xH25mm (35mm incl. bracket)
EMC ECE R10, DT2-connection

809256
Position light white, red and orange
10-32V DC, 27W,
length 766 x depth 50.4 x height 30.9 mm

809219
Position light White, Red and Amber
9-35V DC, 92W, 5.911 lumen, cable length 2,500 mm
Length 562 x depth 71.6 x height 76 mm

809255
Position light white, red and orange
10-32V DC, 27W,
length 766 x depth 50.4 x height 30.9 mm

809248
9-35V DC, 19W, 2.296 lumen, cable length 500 mm
Length 150 x height 47 x depth 39.5 mm

809064
Type of Lamp LED
Voltage (V DC) 12-80V DC
Consumption (w) 12V 6,5
Consumption (w) 24V 6,5
IP-class 67
Colour housing Black
Colour lens Clear
Colour LED´s Blue
Connection Cable
Cable length (mm) 500
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 62
Depth (mm) 56,4
Height (mm) 53
Height including bracket (mm) 98,5
ADR-approved No
E-approved No
EMC ECE R10

809516
9-32V DC, 9W, 600 Lumen
Cable Length 520 mm
Ø 107 mm, Depth 41,5 mm

809515
9-32V DC, 9W, 600 Lumen
Cable length 520 mm
Length 100 x Depth 40 x Height 118 mm

809236
10-32V DC, 19W, 1.942 lumen, cable length 500 mm
Ø 84.4 mm, depth 54.72 mm

809234
10-32V DC, 10W, 931 lumen, cable length 500 mm
Length 52.11 x depth 26.13 x height 67.03 mm

908533
12-70V DC, Consumption 35W, 3,000 Lumen, Light Pattern Flood,
Position Light Orange, Cable Length 2.000 mm
Length 109 x Height 109 mm x Depth 49 mm
