Description:

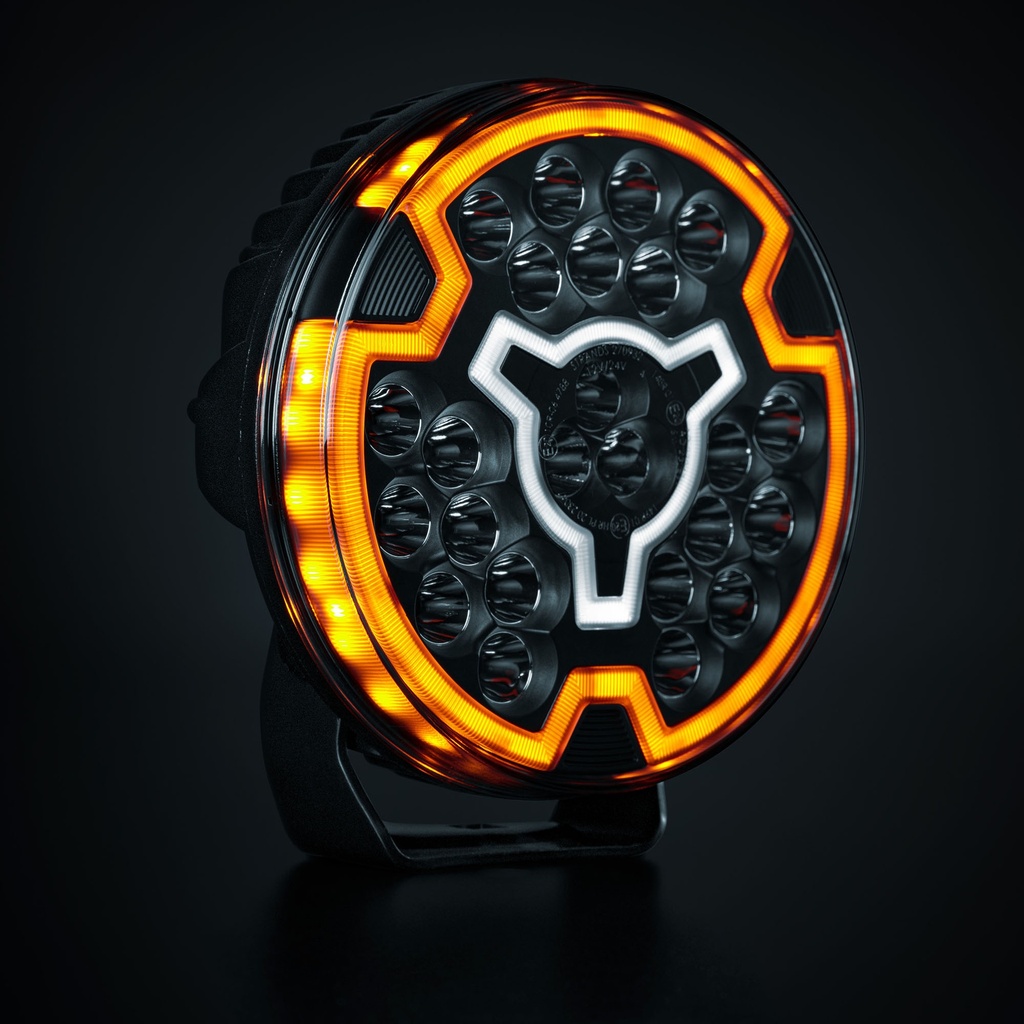

Enhance your style to the max. The Freedom Maximum Position driving light 7” is full of brightness and personality and has a dark position light. Innovative technology renders the white and amber position lights invisible when not in use and reveals their distinct shape and intense glow when activated. The amber light is E-approved both as a forward position light and a side marker ECE R148(R7, R91), R149 (R112).
As with all Freedom family products, the Maximum Position is made in Europe to reduce transport and environmental strain. With durable materials backed by Strands Lighting Division’s 3-year warranty, it will be a lasting addition to any vehicle. The solid design suits heavier vehicles, such as jeeps and trucks, or anywhere you need intense brightness and eye-catching position light. Freedom MP is IP-rated IP69K for maximum durability to withstand dirt, liquids, and exposure to the elements.
With a 3 m cable, it is easy to install in various places on your vehicle. Thus, you can create the optimal driving experience for your needs in forested areas or other dark roads. The optimized beam has a range of 311 m @ 1 Lux, ensuring high visibility ahead. An incredible brightness of 10000 lumens and a 5700-kelvin color temperature combine to create a powerful illumination.
Voltage (V DC) 10-32
Consumption (W) 108
Consumption specific function (W) Front pos.: 3W Side marker: 9W
Functions Driving light, front marker, side marker
Theoretical lumen 10800
Actual lumen 10000
1 LUX @ m 311
Color temperature (kelvin) 5700
Beam pattern Optimized beam
Beam angle (°) (Width) 26,7°
Position light White and amber
Connection Cable
Cable length (mm) 3000
Color housing Black
Color lens Clear
Color LED´s White/Amber
Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Depth (mm) 62
Height including bracket (mm) 194
Diameter (mm) 179
IP-class 69K
Operating temperature -40 - +40
E-approved Yes
According to regulation R148(R7,R91), R149(R112)
Reference number 20
EMC R10
