Description:

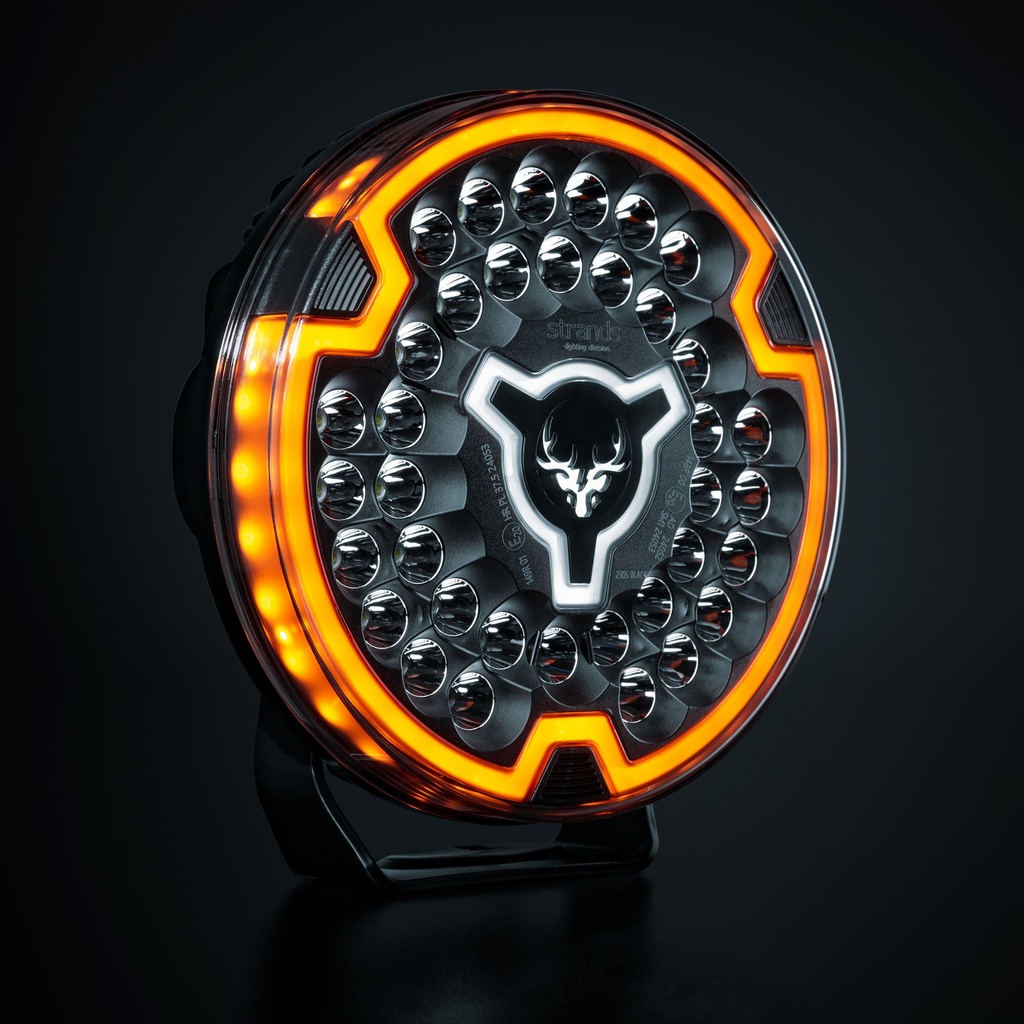

Enhance your style to the max. The Freedom Maximum Position driving light 9” is full of brightness and personality and has a dark position light. Innovative technology renders the position light invisible when not in use and reveals the distinct shape and white and amber glow when activated. The amber light is E-approved both as a forward position light and a side marker ECE R148(R7, R91), R149 (R112).
With a 3 m cable, it is easy to install in various places on your vehicle. Thus, you can create the optimal driving experience wherever the road takes you. The optimized beam has a range of 406 m @ 1 Lux, ensuring high visibility ahead. An incredible brightness of 13400 lumens and a 5700-kelvin color temperature combine for a powerful illumination.
The Maximum Position 9” is made in Europe to reduce transport and environmental strain. With durable materials backed by Strands Lighting Division’s 3-year warranty, it will be a lasting addition to any vehicle. The solid design suits heavier vehicles, such as jeeps and trucks, or anywhere you need intense brightness and eye-catching style. Freedom MP is IP-rated IP69K for maximum durability to withstand dirt, liquids, and exposure to the elements.
- Voltage (V DC) 10-32
- Consumption (W) 113
- Consumption specific function (W) Front pos.:3,3W Side marker: 10W
- Functions Driving light, front marker, side marker
- Theoretical lumen 16700
- Actual lumen 13400
- 1 LUX @ m 406
- Color temperature (kelvin) 5700
- Beam pattern Optimized beam
- Beam angle (°) (Width) 23,2°
- Position light White and amber
- Connection Cable
- Cable length (mm) 3000
- Color housing Black
- Color lens Clear
- Color LED´s White/Amber
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Depth (mm) 6,4
- Height including bracket (mm) 245
- Diameter (mm) 228
- IP-class 69K
- Operating temperature -40 - +40
- E-approved Yes
- According to regulation R148(R7,R91), R149(R112)
- Reference number 37,5
- EMC R10
