Description:

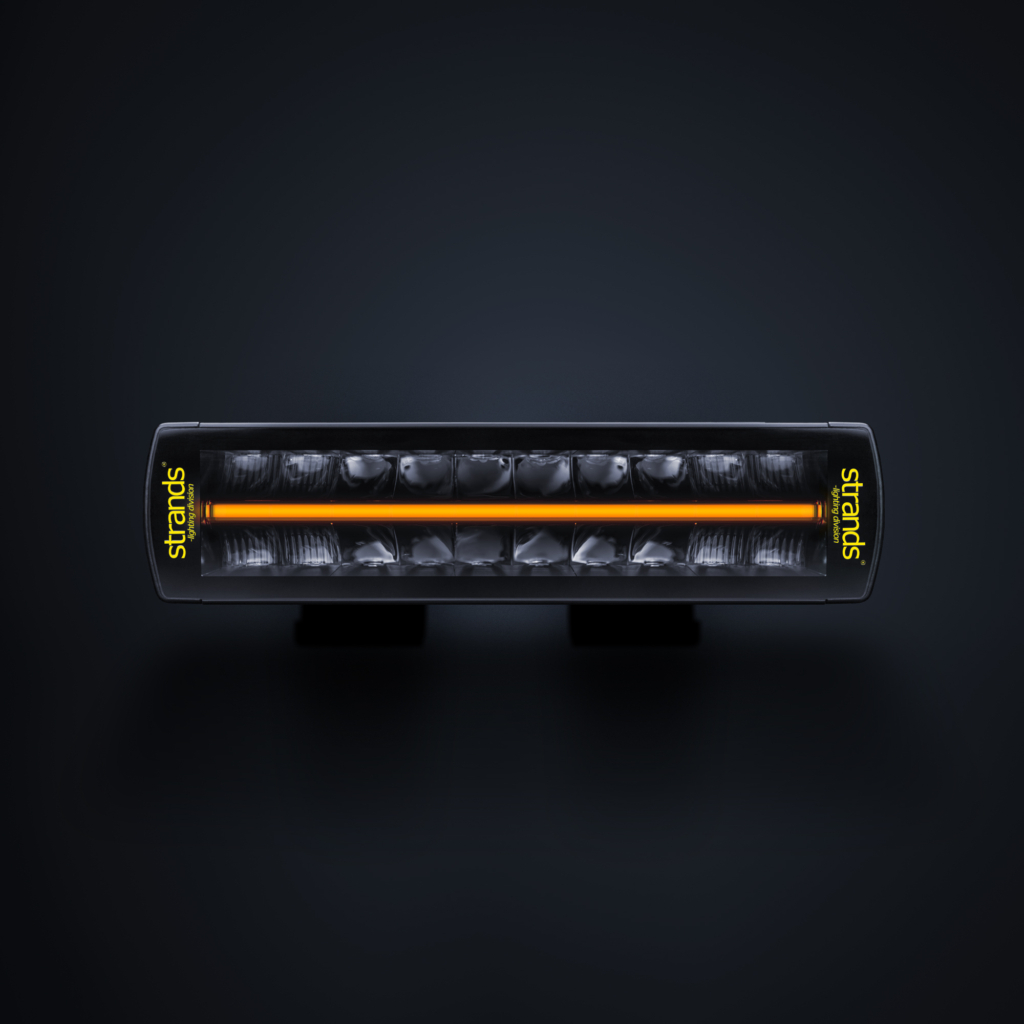

Nothing compares to the ultimate driving experience. Siberia Outlaw UDX 12” is a compact double-row LED bar that pushes the boundaries to give you a revolutionary lighting experience.
Siberia Outlaw UDX 12” is a total knockout compared to previous LED bars when it comes to light output. It stands out by allowing the driver to switch between two modes –Xperience mode and E-approved mode (ECE R112, R7). The driver activates the Xperience mode by turning on the high beam for two seconds and then flashing it three times. To switch to E-approved mode, repeat the procedure.
The Xperience mode provides the ultimate beam pattern experience with 8000 actual lumens and a consumption of 110 W. Delivering a wide, long, and massive light output with a range of more than 500 meters. The output will be like nothing you have experienced before.
The E-approved mode delivers an extensive and powerful light with 4370 actual lumens and a power consumption of 61 W. The LED bar also has a superb color temperature of 5700 Kelvin, which gives you an excellent view of your surroundings, and you will see everything you need ahead of you.
Siberia Outlaw UDX is created of high-end components. Shaped with precision and world-class technology and made with the best diodes, housing, and protecting UV coating. Stand out from the crowd with the distinct Siberia Outlaw yellow logotype and the design with no edge lens and characteristic position light. For the position lights, choose between the moonlight in white or the sunrise in amber. Mount UDX with the included side and back brackets or the clamp brackets (purchased separately, Part No. 809185). Installation is easy with a DT-4 connector. With UDX 12” mounted on your vehicle, you can always count on the ultimate driving experience.
- Voltage (V DC) 10-32
- Consumption (W) E-mode: 61W / Xperience mode: 110
- Theoretical lumen 12000
- Actual lumen E-mode: 4370lm / Xperience mode: 8000
- 1 LUX @ m E-mode: 412m / Xperience mode: 536
- Color temperature (kelvin) 5700
- Beam pattern Extended Beam
- Beam angle (°) (Width) 19,7°
- Position light White and amber
- Connection DT-4PIN
- Cable length (mm) 600
- Color housing Black
- Color lens Clear
- Color LED´s White/Amber
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length (mm) 307
- Depth (mm) 71,5
- Height (mm) 76
- Height including bracket (mm) 89
- IP-class 68/69K
- Operating temperature -30 - +65
- E-approved Yes
- According to regulation R148(R7),R149(R112)
- Reference number 45
- EMC R10
